INDEC Medical Systems

Enhancerô

DICOM and echoPlaque Review and Analysis

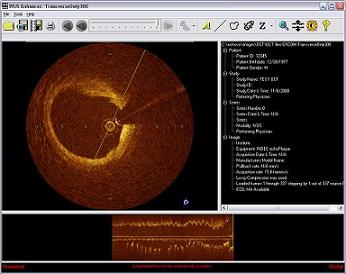

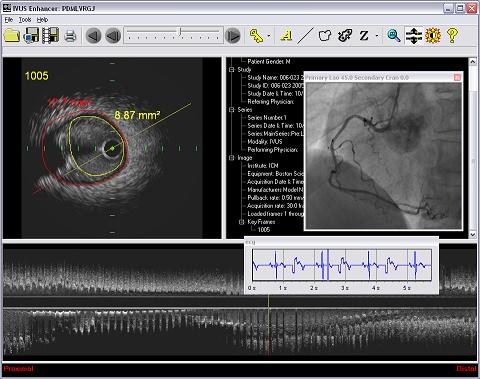

INDEC's Enhancer is a versatile, easy-to-use software product for review and analysis of DICOM, echoPlaque, and Galaxy files. Enhancer offers powerful capabilities including full length, real time longitudinal display and rotation; image size, brightness, and contrast adjustment; two dimensional distance and area quantification; and the ability to export still images and video animations. Although primarily designed for use with IVUS images, Enhancer is compatible with most DICOM modalities including OCT (Optical Coherence Tomography) and Angiography images. Enhancer's Pic-in-Pic feature allows simultaneous IVUS and Angio viewing. Moreover, Enhancer is designed to be able to run on laptops, so now IVUS analysis can travel with you wherever you go.

Enhancer provides:

  • Simple-to-use, graphical user interface
  • Compatible with IVUS DICOM (Boston Scientific and Volcano), OCT DICOM, Angio XA DICOM, Galaxy Native, and echoPlaque IVUS images
  • View Angio and IVUS simultaneously
  • Opens Audio, ECG, Bookmarks, and Measurements from Boston Scientificís iLab
  • Opens and displays all measurements from files saved in echoPlaque
  • Annotate images and movies with text, measurements, and more
  • Save movies in AVI or WMV format, including longitudinal view
  • Easy export to slide making and presentation programs
  • Resizable cross-sectional and longitudinal views
  • Semi-automatic drawing tools for easy contour definition
  • Easy 2-dimensional quantifications - areas and distance
  • Brightness and contrast adjustments
  • Easy-to-use, regional zoom capabilities
  • Key frame bookmarks

Enhancer toolbar

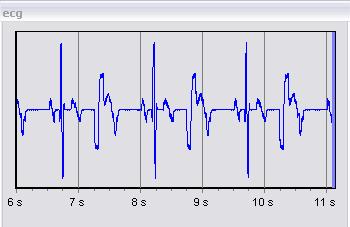

Enhancer ECG

Enhancer has all the tools necessary to review and quickly analyze nearly any medical file (DICOM, echoPlaque, Galaxy Native) with a user-friendly interface. Enhancer is also fully compatible with Boston Scientificís iLab format, reading in bookmarks, measurements, screen captures, audio and ECG data. Stepping through the ECG data window will automatically increment the cross-sectional and longitudinal views, so you can see exactly what is happening at different parts of the cardiac cycle.

Enhancer Brightness and Contrast

The user also has numerous display options to choose from to make the image appear exactly as desired. Brightness and contrast can be adjusted with two slider controls, regional zoom allows for quick and efficient zooming capabilities, and resizing dividers change the relative size of transverse and longitudinal views.

Enhancer Annotations

Several different types of annotation are available for use on transverse and longitudinal views, including text annotations, distance measurements, area calculations (with free-hand or semi-automatic contours), calibrated Z overlays, scale bars, and more. These annotations can be saved with a single-frame image or included in a movie file (AVI or WMV format) animating in the transverse or longitudinal view.

Enhancer is the ideal tool for review and analysis of IVUS, OCT, and Angiography images.


PURCHASING ENHANCER SOFTWARE

Enhancer can be purchased as an add-on for an existing echoPlaque 3.0 system or it can be included as an option when purchasing a new echoPlaque 3.0 system. When purchasing Enhancer as as add-on, please provide your dongle identification number with your order.

Please contact us to learn more about how your existing INDEC workstation could benefit from the addition of our Enhancer analysis and review software .
